the t.bone freeU 823 HeadmiKe D Bundle
Quantity
-
Detail
Bundle offer comprising

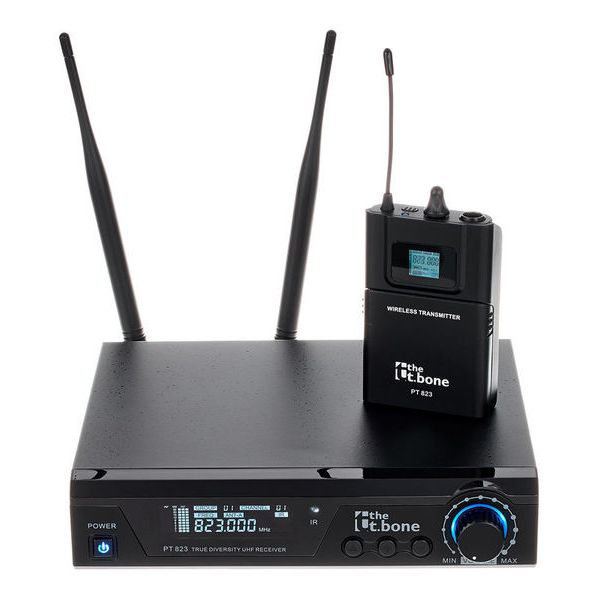

the t.bone freeU PT 823
UHF Wireless System

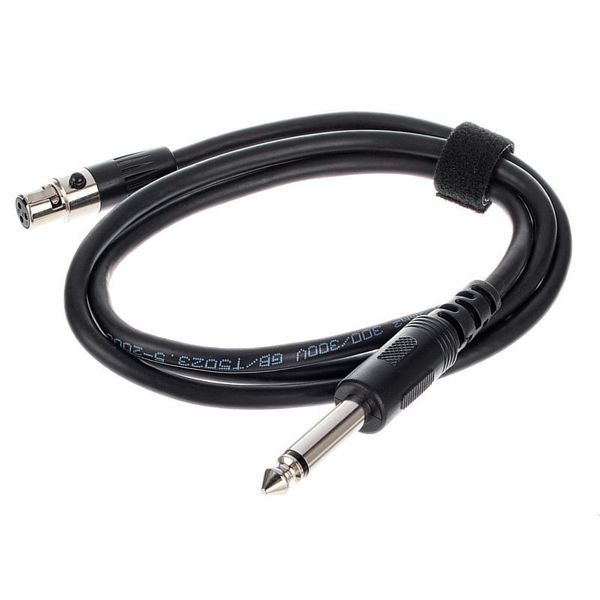

- Includes a pocket transmitter and guitar cable for applications with instruments
- Frequency band: 823-832 MHz
- Frequency response: 50 - 16,000 Hz
- 10 Preprogrammed frequency groups with 10 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transmission of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 80 kHz
- Modulation type: F3E
- LCD Display

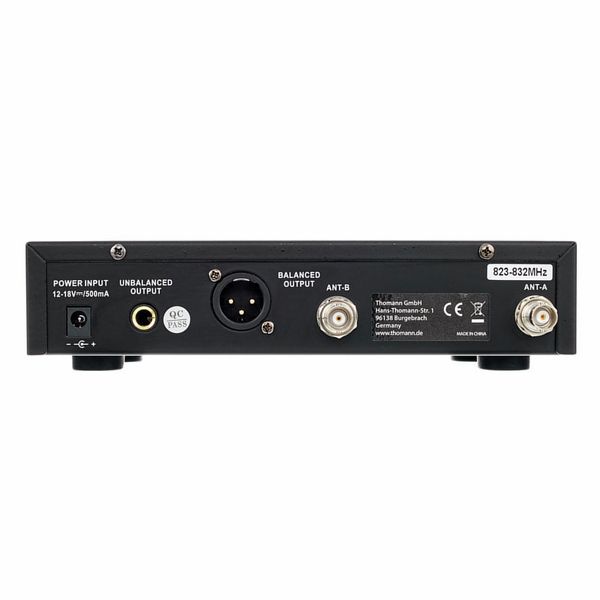

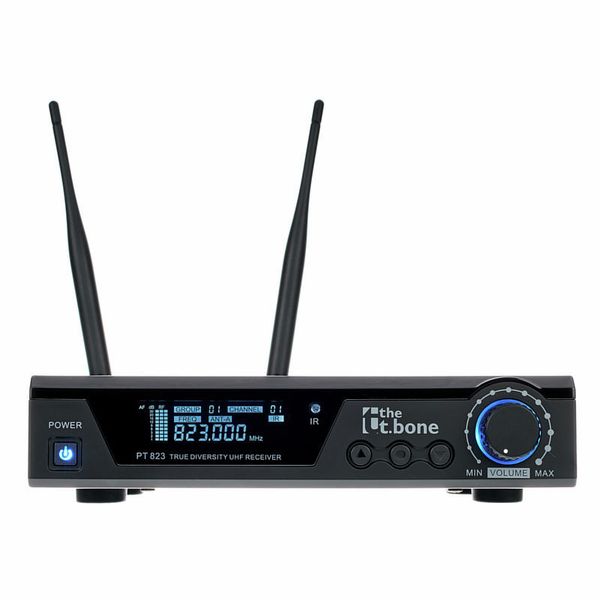

- 9.5" 1U housing with 2 x BNC antenna connectors
- XLR and jack output
- Operates with 12 V, 0.5 DC power supply, centre positive

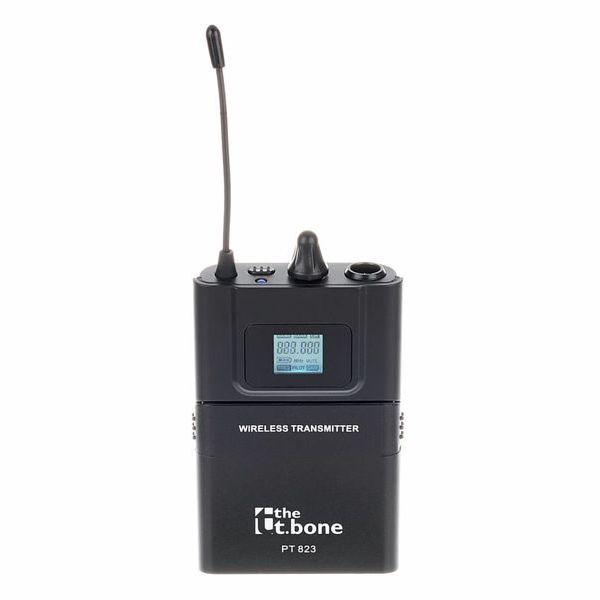

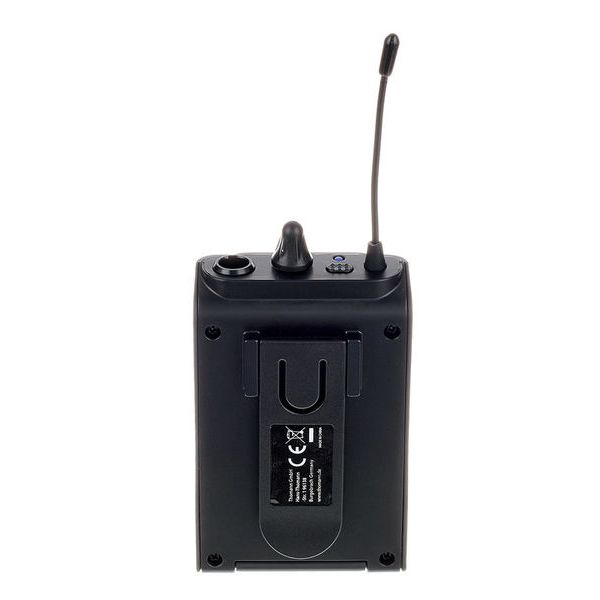

- Pocket transmitter housing: Plastic
- LCD-Display

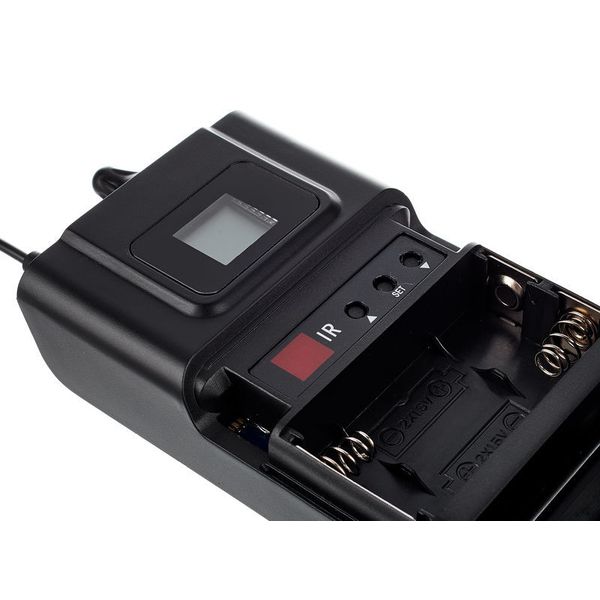

- Operates with 2 AA batteries or rechargeable batteries

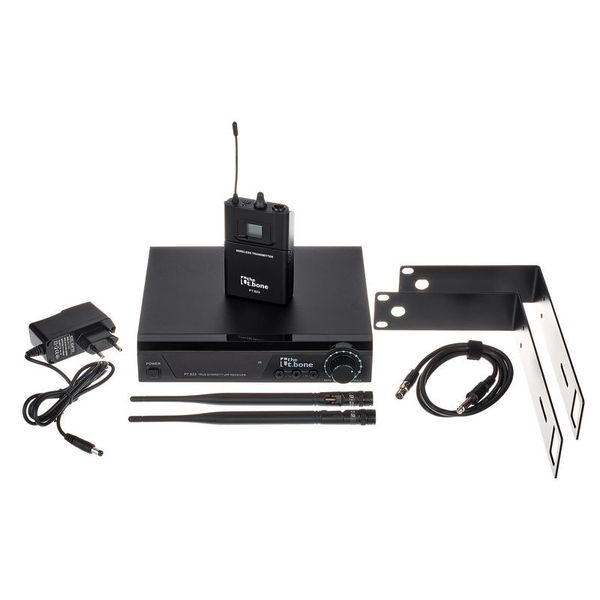

- Includes guitar cable, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
- Suitable antenna converter: Art. 177448 (not included)
Note: a maximum of 4 systems can be operated simultaneously in this frequency band.

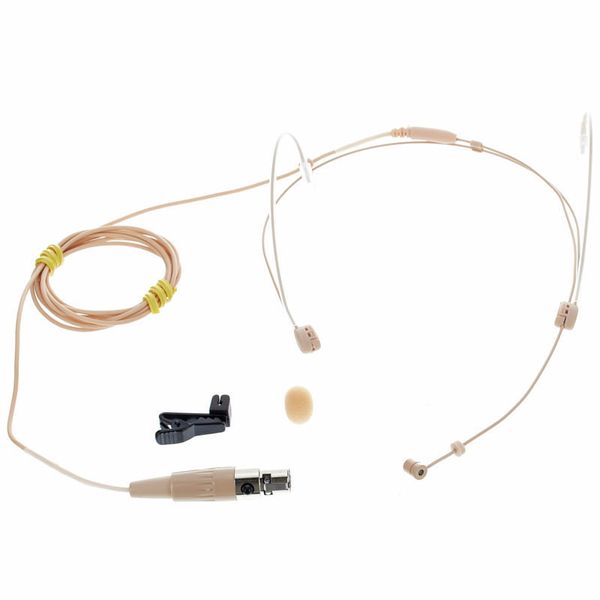

the t.bone HeadmiKe - D AKG
Headset Microphone

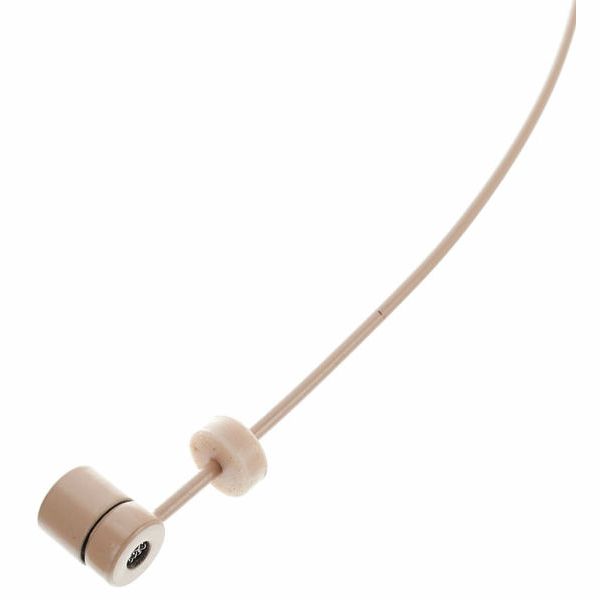

- Lightweight condenser headset microphone

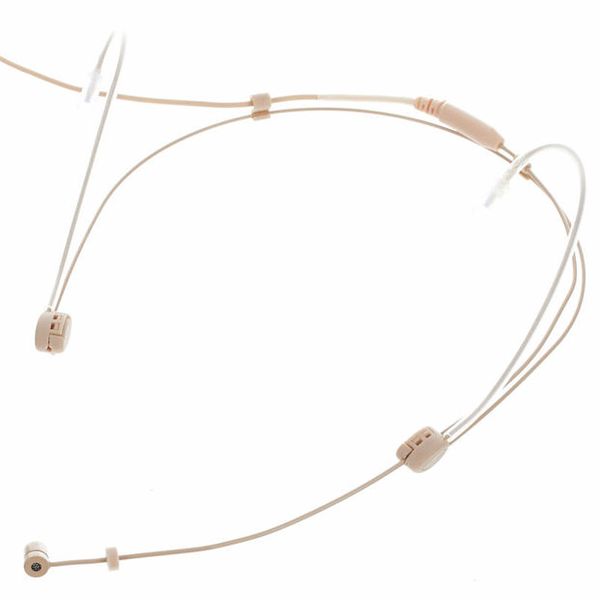

- Two earhooks
- Left/right adjustable
- Polar pattern: Kidney
- Frequency range: 50 - 20000 Hz
- Sensitivity: 4.4 mV / Pa, -47.2 dB re 1 V / Pa
- Sound pressure level: 115 dB
- Impedance: 750 Ohm

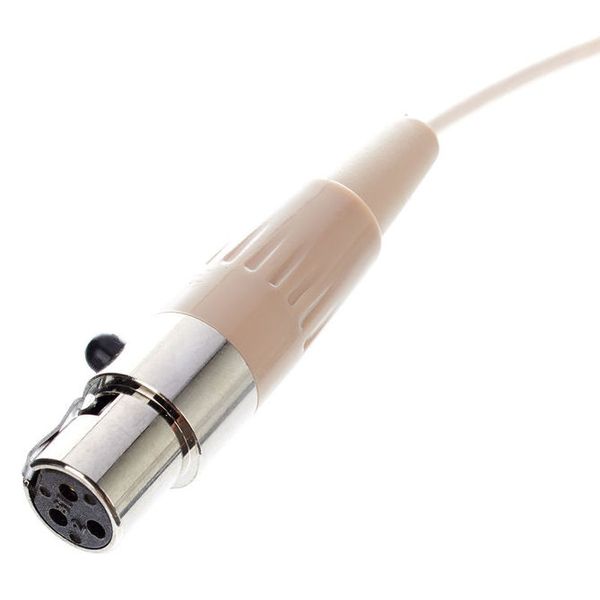

- 3-Pin mini XLR connector suitable for AKG Bodypack transmitter
- Cable length: approx. 120 cm
- Colour: Beige
- Includes cable clip
- Replacement windscreen: Art. 355914 (not included)
- Available sinceAugust 2017
- Item number420990
- Sales Unit1 piece(s)
- Headset Cannels1
- Transmission Formatanalog
- Frequency823 MHz – 832 MHz
- Receiver TypeStationary
- PatternCardioid
- Earset2 Ears
- Mountable AntennaBNC
- Charging SystemNo
- Integrated batteryNo
- DanteNo
- DiversityYes
- Capsule TypeCondenser
- Mic Model349293
- Microphone ColourBeige
- Transmission power in mW30 mW
- Usable Frequecies100
- Switching Bandwidth in MHz9 MHz
- Frequency DisplayYes
- Automatic Frequency SearchYes
- Battery Power DisplayYes
- RackkitYes
- OutputXLR
- Receiver Width in mm210 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm170 mm
- Receiver Weight in Kg0,8 kg
