the t.bone freeU 863 EarmiKe O Bundle

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Bundle offer comprising

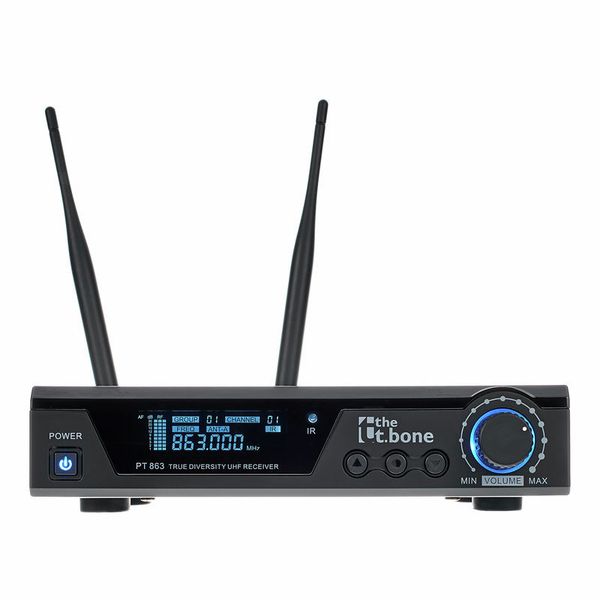

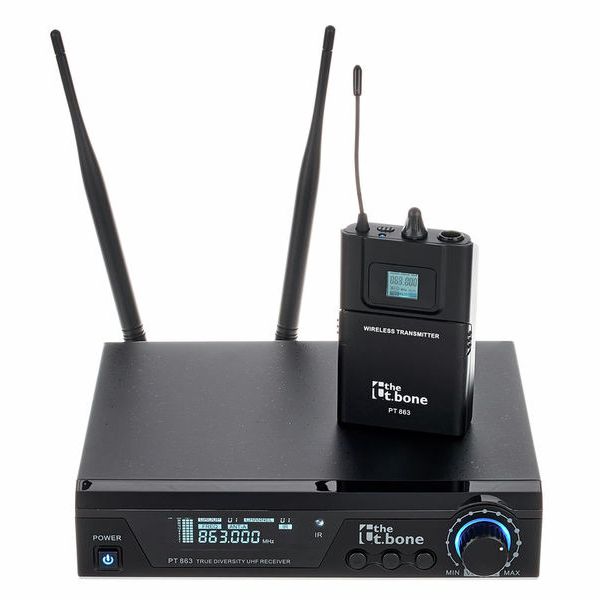

    the t.bone freeU PT 863

    UHF Wireless System

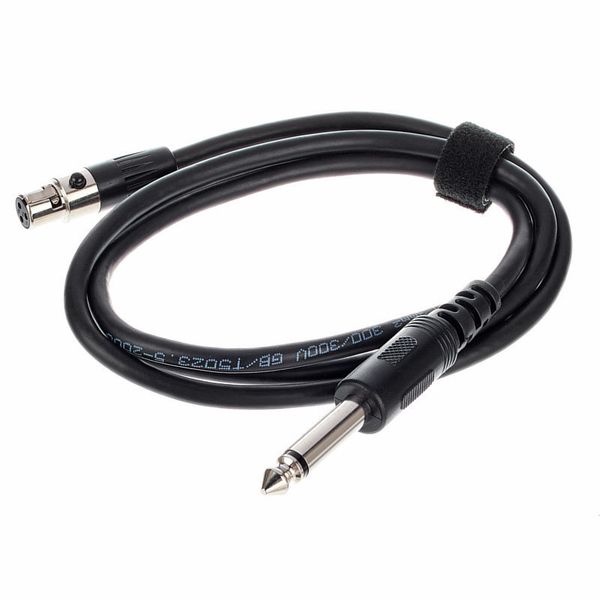

    • With pocket transmitter and guitar cable for instrument applications
    • Frequency band: 863 - 865 MHz
    • Frequency range: 50 - 16,000 Hz
    • 4 Pre-programmed frequency groups with 4 available channels each
    • Auto squelch
    • Frequency scan in the receiver
    • Adjustable AF output
    • Transmission power: 10 mW
    • Infrared transfer of the settings from the receiver to the transmitter
    • Pilot tone
    • Increments of 125 kHz
    • Modulation type: F3E
    • LCD display

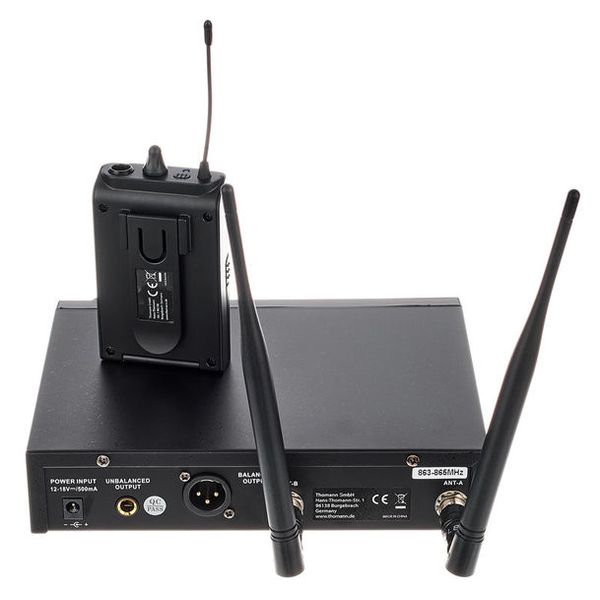

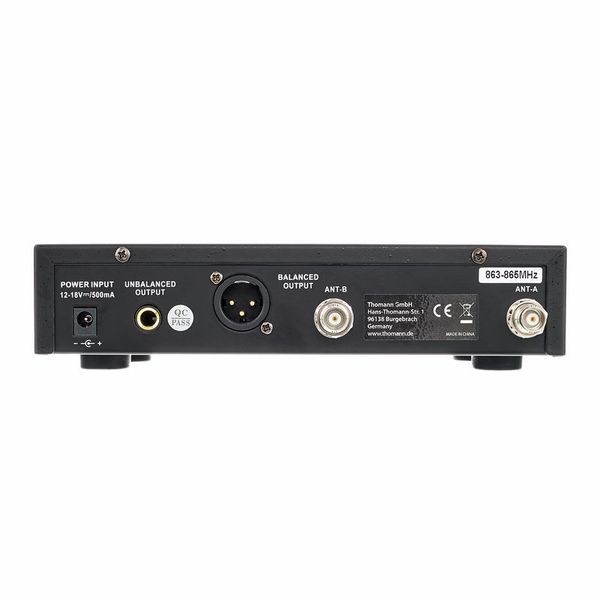

    • Housing size: 9.5", 1 U with 2 BNC antenna connectors
    • XLR- and jack output
    • Operates with 12 V, 0.5 DC power supply, centre positive

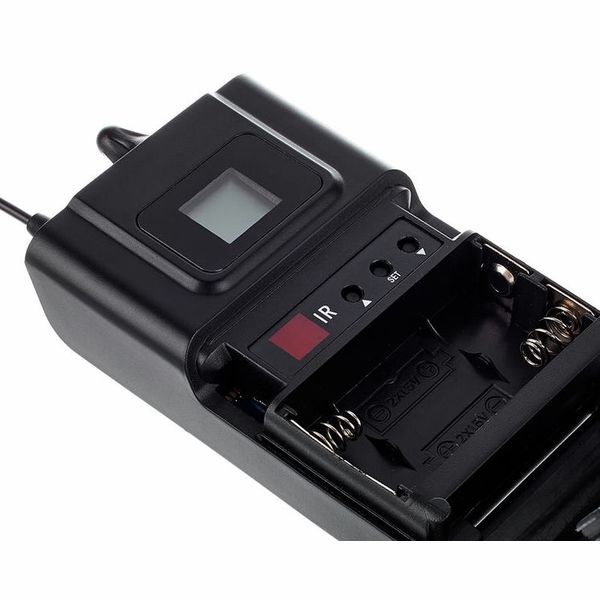

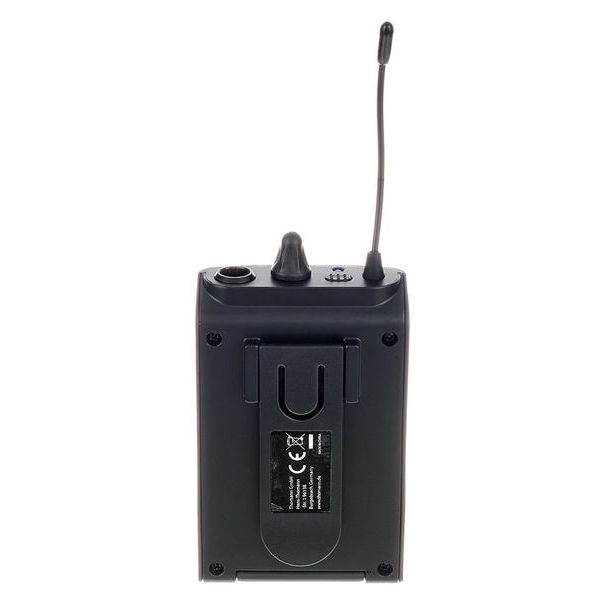

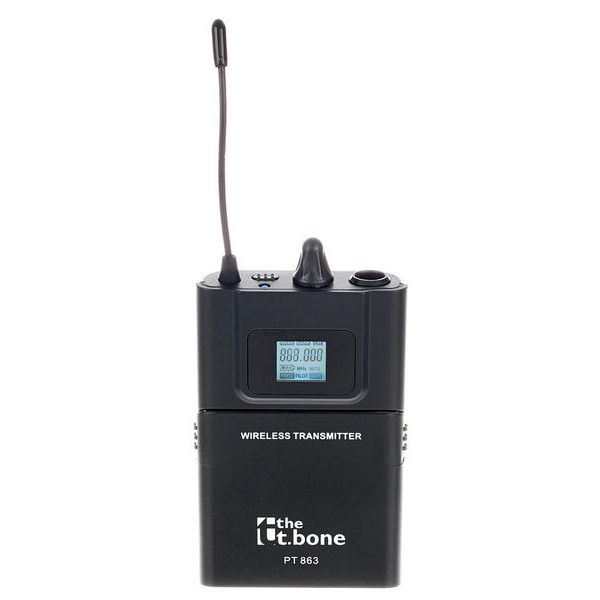

    • Pocket transmitter housing: Plastic
    • LCD display
    • Operates with 2 AA batteries or rechargeable batteries

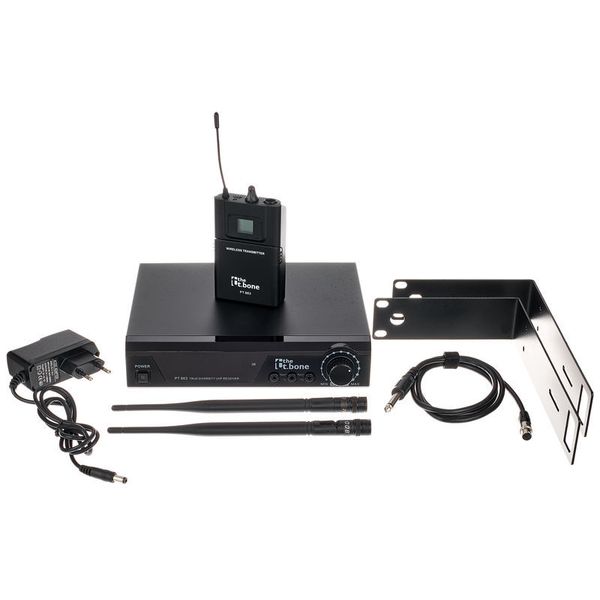

    • Includes guitar cable, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
    • Suitable antenna converter: Art. 177448 (not included)

    Note: a maximum of 2 systems can be operated simultaneously in this frequency band.

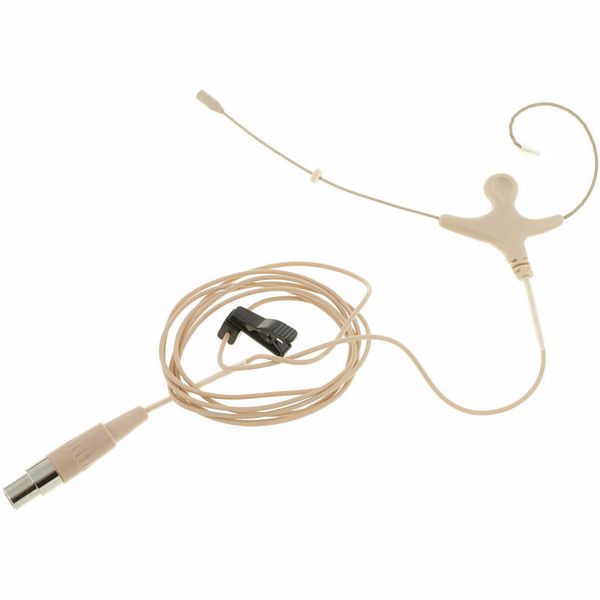

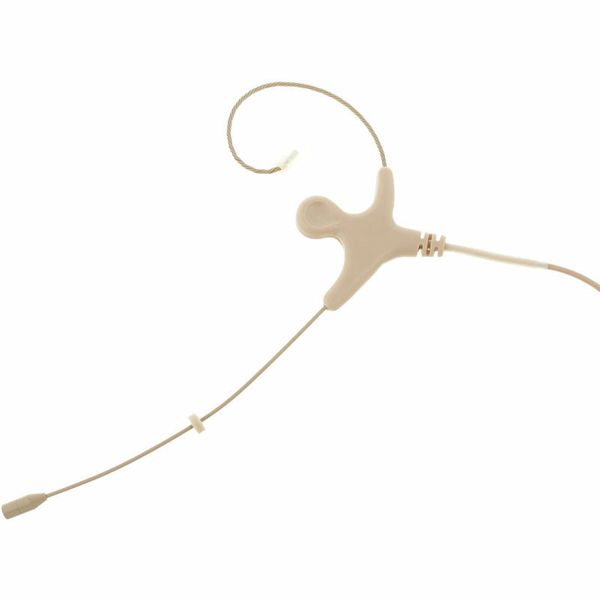

    the t.bone EarmiKe - O AKG

    Lightweight One-Ear Headset Microphone

    • Suitable for all ears due to flexible suspension

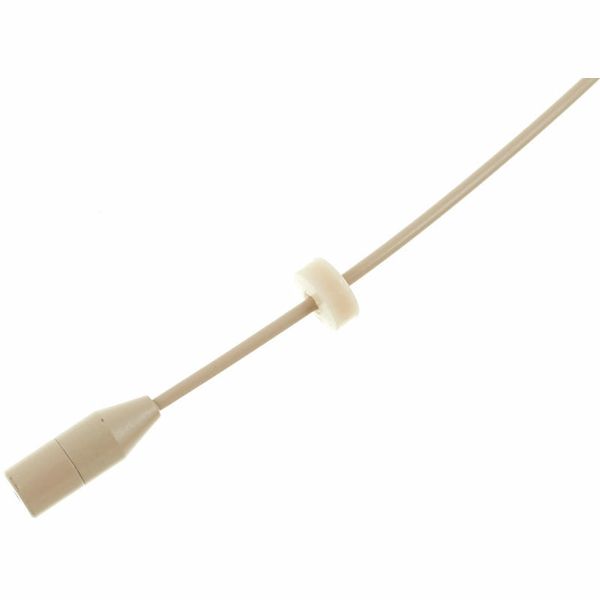

    • Condenser capsule
    • Polar pattern: Omni-directional
    • Frequency range: 50 - 20,000 Hz
    • 4.0 mV / Pa
    • -47.9 dB re 1 V / Pa
    • Sound pressure level limit: 115 dB
    • Impedance: 750 Ohm

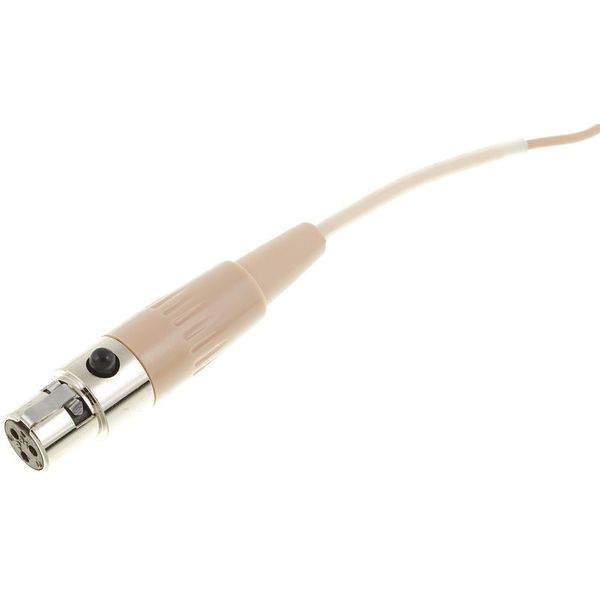

    • 3-pin Mini XLR connector suitable for AKG Bodypack transmitter
    • Colour: Beige
    • Cable length approx. 120 cm

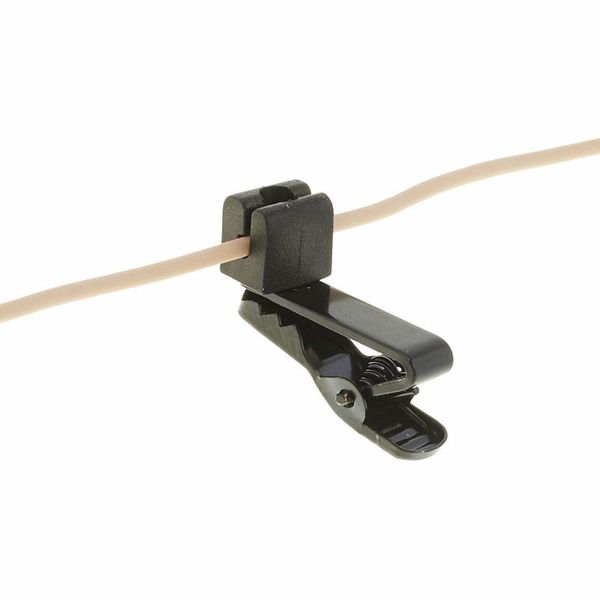

    • Includes cable clip and foam windscreen
    • Available sinceAugust 2017
    • Item number421006
    • Sales Unit1 piece(s)
    • Headset Cannels1
    • Transmission Formatanalog
    • Frequency863 MHz – 865 MHz
    • Receiver TypeStationary
    • PatternOmnidirectional
    • Earset1 Ear
    • Mountable AntennaBNC
    • Charging SystemNo
    • Integrated batteryNo
    • DanteNo
    • DiversityYes
    • Capsule TypeCondenser
    • Mic Model349296
    • Microphone ColourBeige
    • Transmission power in mW10 mW
    • Usable Frequecies16
    • Switching Bandwidth in MHz2 MHz
    • Frequency DisplayYes
    • Automatic Frequency SearchYes
    • Battery Power DisplayYes
    • RackkitYes
    • OutputXLR
    • Receiver Width in mm210 mm
    • Receiver Height in mm44 mm
    • Receiver Depth in mm170 mm
    • Receiver Weight in Kg0,8 kg
